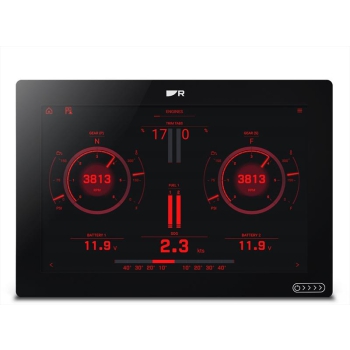

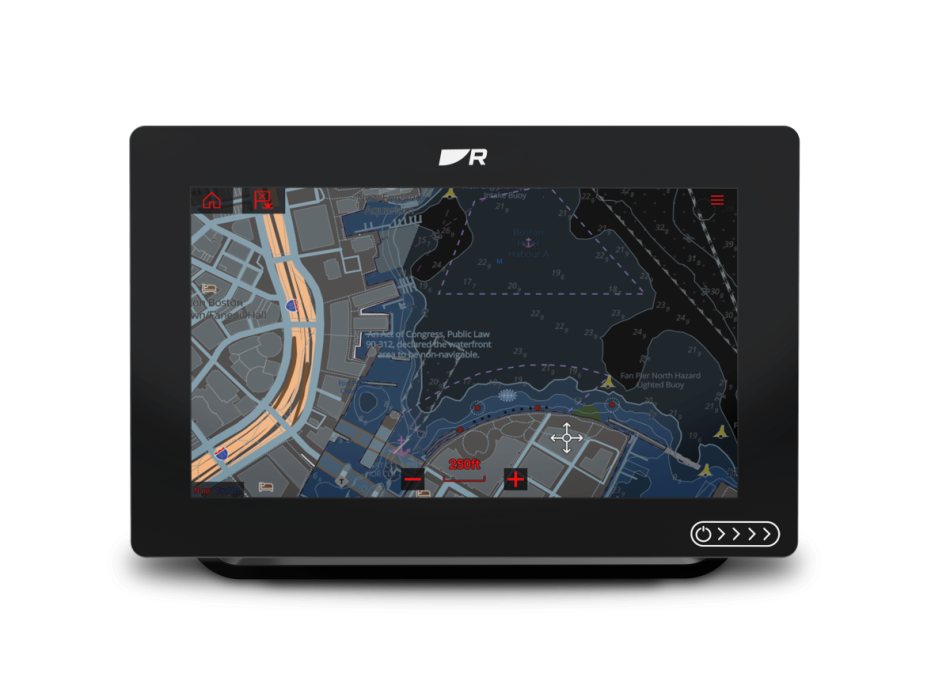

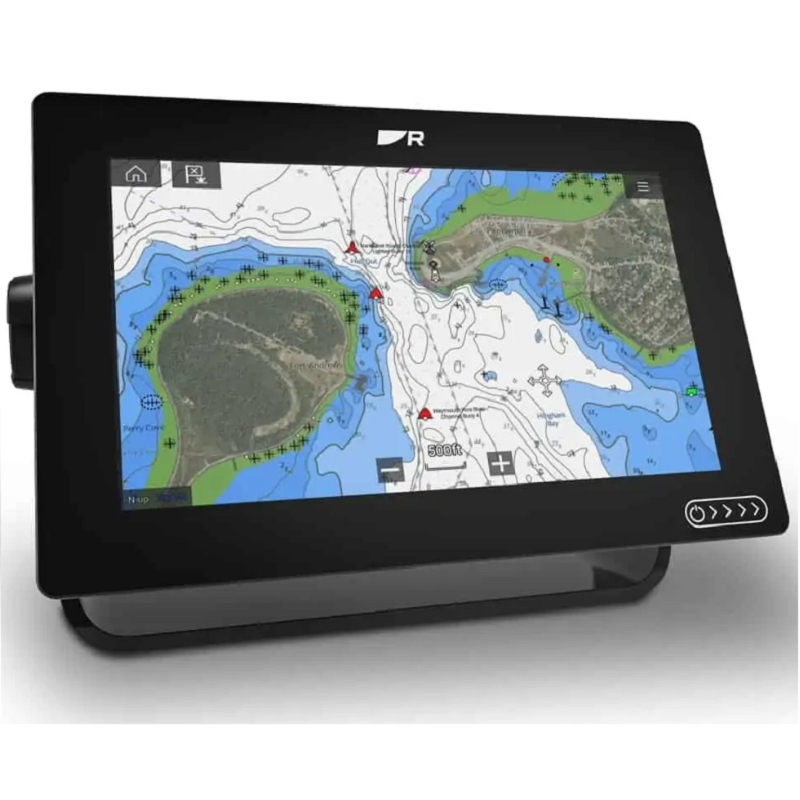

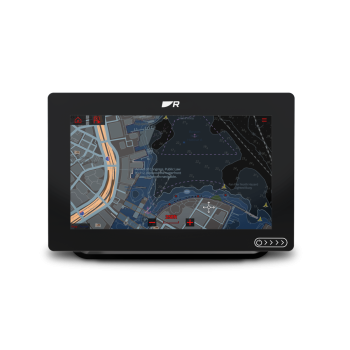

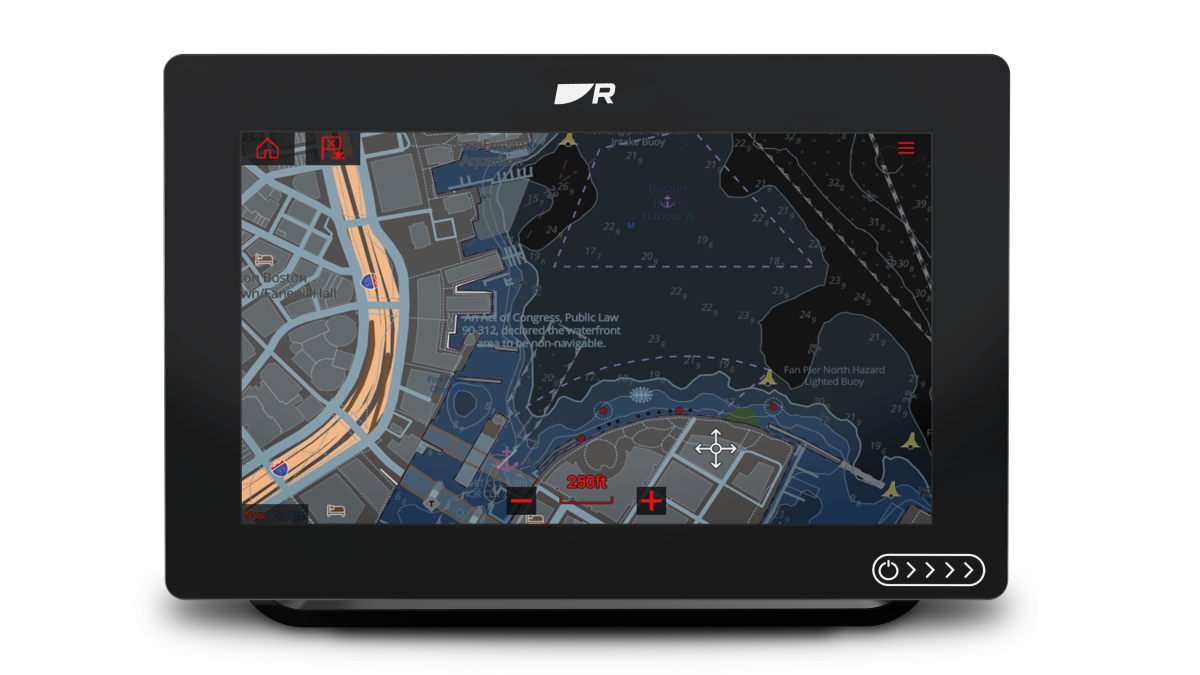

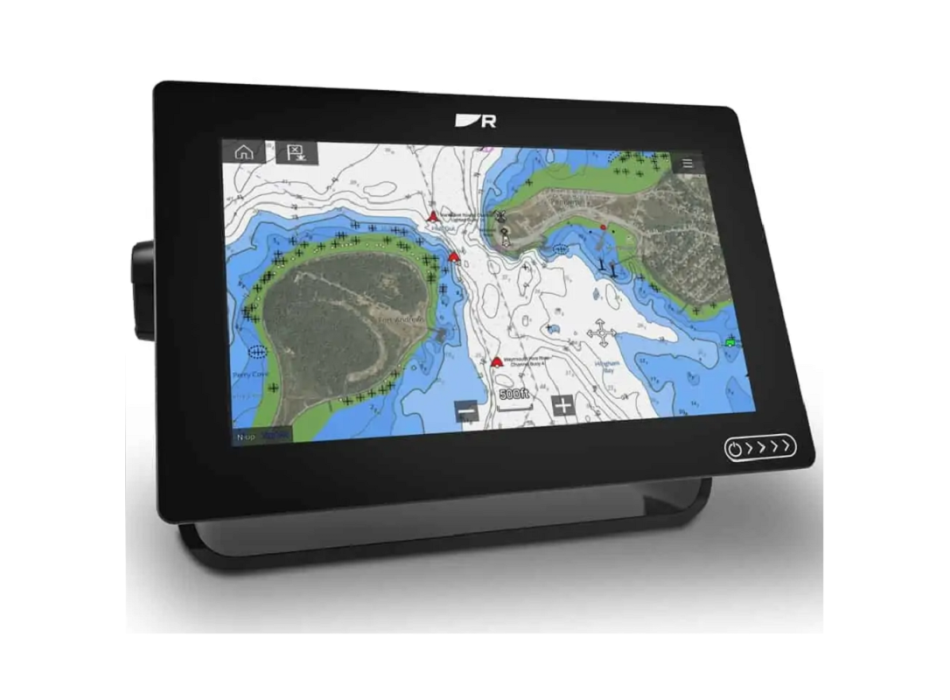

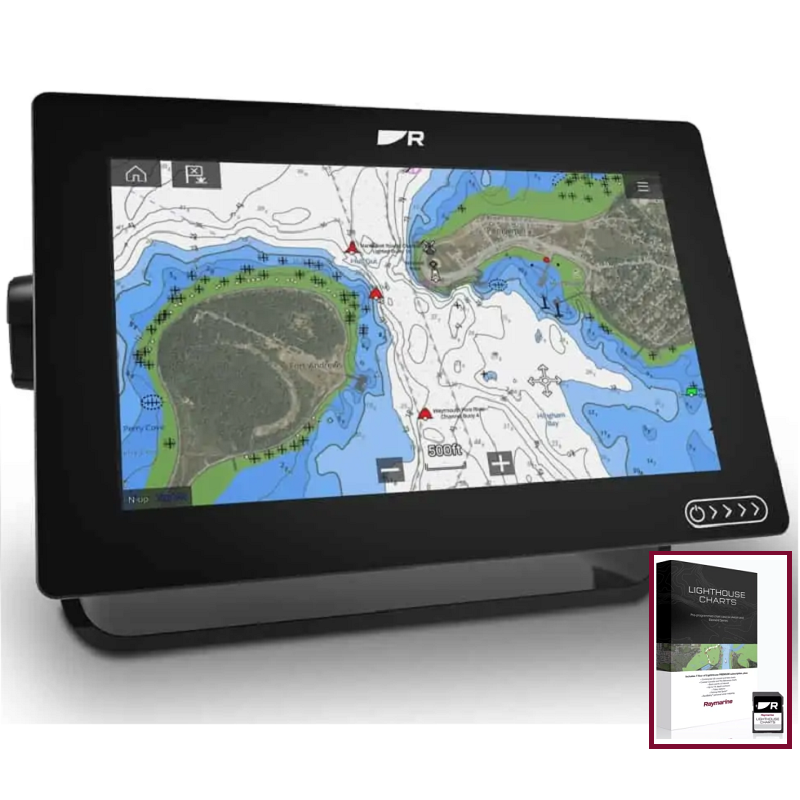

Raymarine AXIOM + 9 9 "multifunction display

  • Code: E70636
€ 1.579,00 € 1.823,90 -13%
Previous price: € 1.823,90
Raymarine AXIOM + 9
New version only GPS without depth sounder

Designed for the highest performance, Axiom® + is the NEXT generation of Raymarine's award-winning multifunction display. Optimized for speed, Axiom Plus features an industry-leading powerful quad-core processor for responsiveness and processing capability, giving you the ability to redraw maps, navigate with augmented reality, and experience the RealVision sonar experience. ™ 3D seamless.

The new high-resolution IPS display guarantees 25% more brightness and the new day / night color tables offer greater visibility in all lighting conditions. Axiom Plus supports the renowned LightHouse 3, the most powerful and easy-to-use operating system for Raymarine multifunction displays.

OPTIMIZED FOR HIGH PERFORMANCE

Fast, responsive and designed to support new features.
Smooth and fast loading of Navionics and C-Map maps.
Powerful quad-core processor, with more built-in memory for personal data and apps.

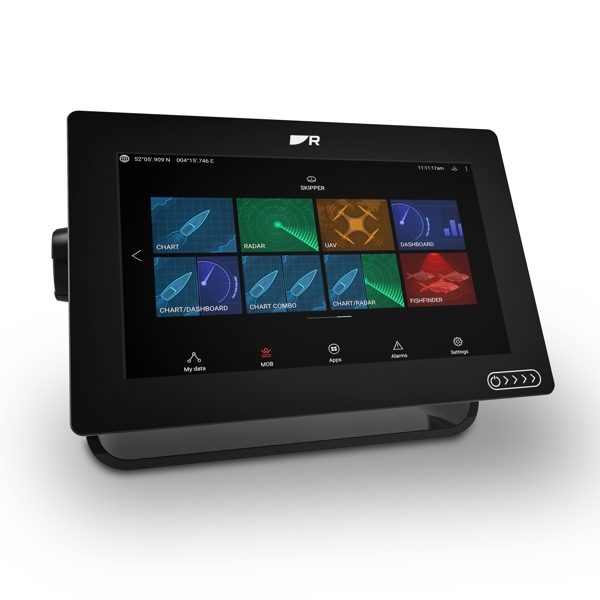

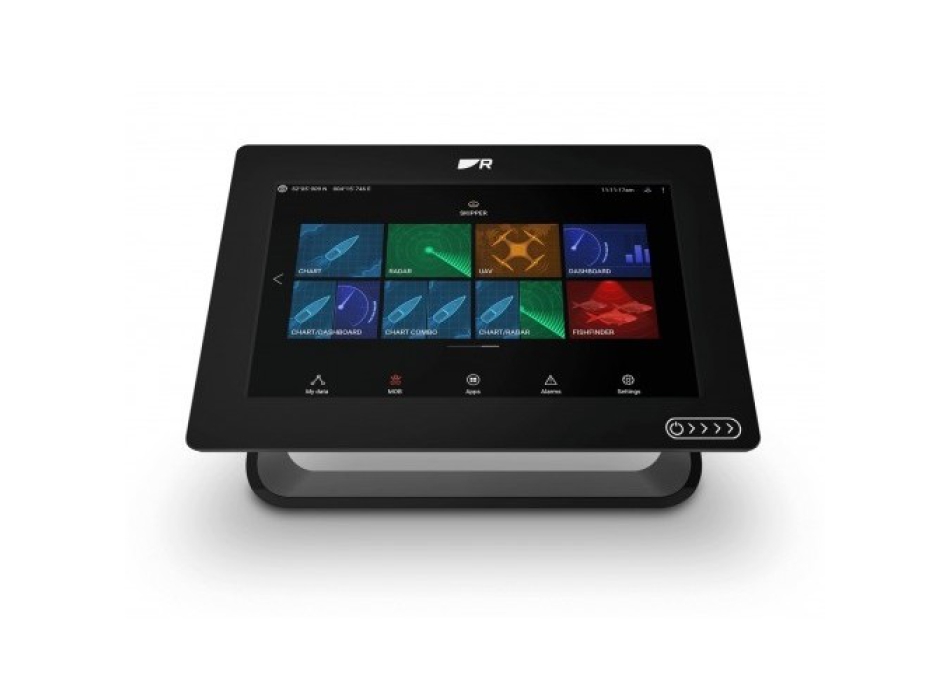

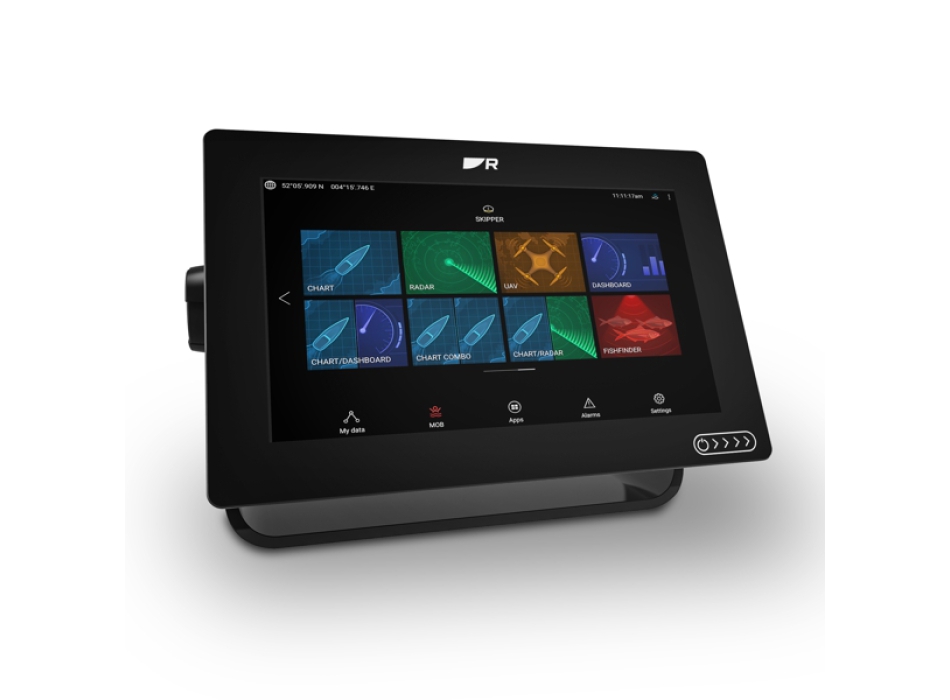

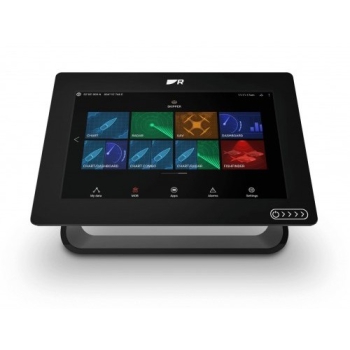

Smart and intuitive, the LightHouse 3 operating system makes navigation easy.

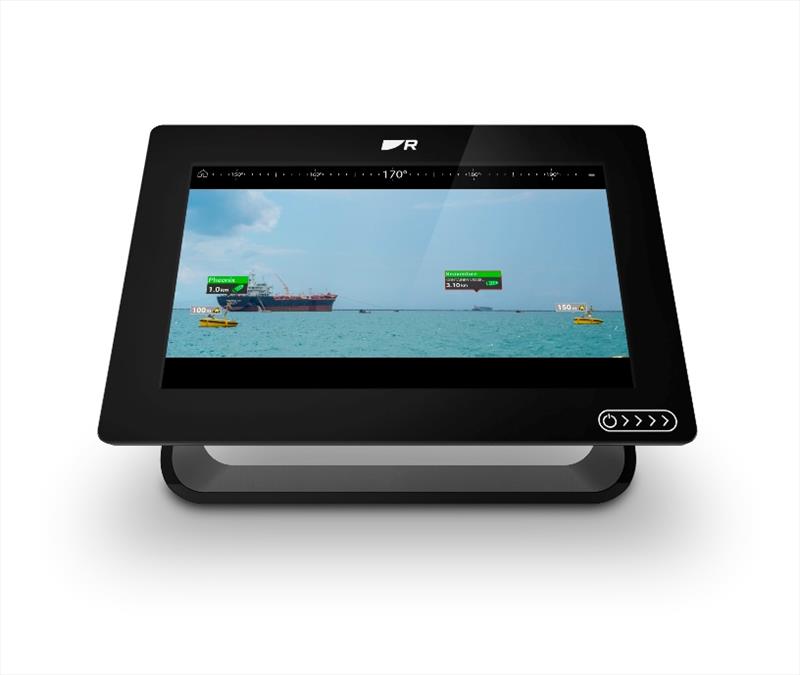

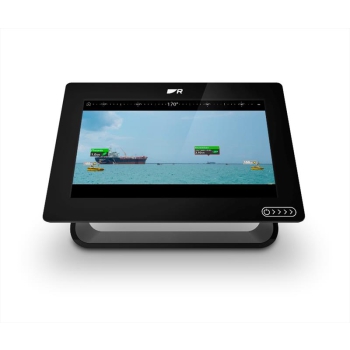

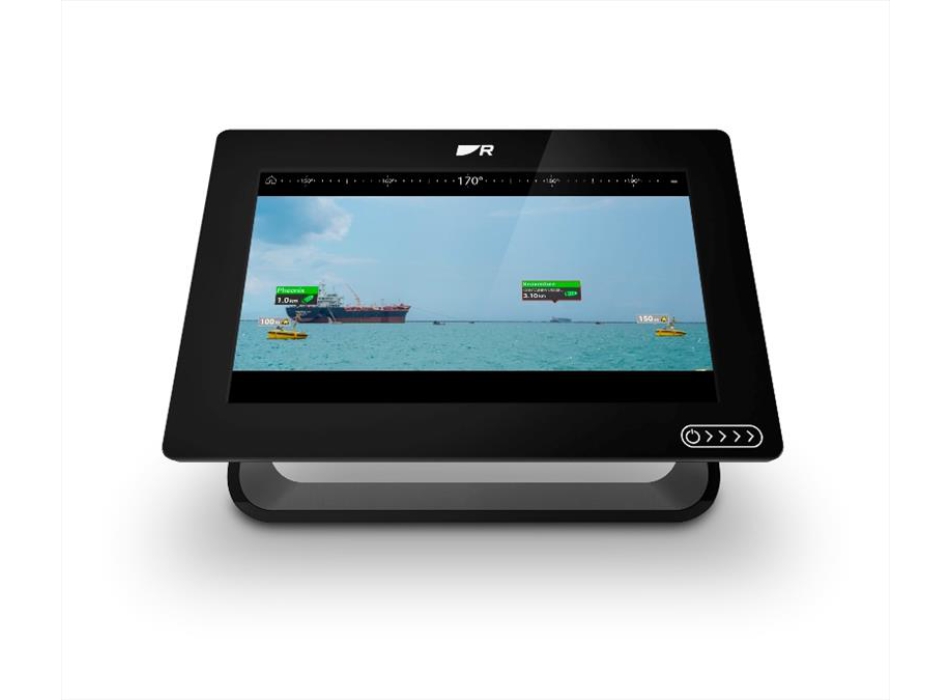

ClearCruise ™ Augmented Reality helps you make smarter navigation decisions.



HYDROTOUGH ™ DISPLAY
The glass screen is coated with nanotechnology materials, resists shocks and repels water, oil and smudges for better viewing and accurate touch controls.

BRIGHTER
The 7, 9, and 12-inch all-weather displays are 25% brighter (up to 1,800 nits).




SHARER
IPS display technology offers wider viewing angles and sharp contrast, with double the resolution of traditional displays.
AXIOM + SPECIFICATIONS 9
9.0 IPS High Density Screen Size
Display resolution 1280 x 720 (WXGA)
Screen type Multitouch with hydrophobic HydroTough ™ coating
Brightness 1,500 nits
Viewing angles 85 ° from top, bottom, right, left
Dimensions
W x H x D 244 x 158 x 77mm
IPX6 / IPX7 waterproof

CONNECTIVITY
Ethernet 1 x 10/100 Mbit / s network port (RayNet)
NMEA0183 No.
NMEA2000 NMEA2000 via DeviceNet connector. SeaTalkng compatible with optional adapter
SeaTalkNG Requires DeviceNet (F) adapter cable (A06079 120mm adapter cable included in box)
USB 1 x USB microAB
Wi-Fi WiFi - 802.11 a / b / g / n
BlueTooth Bluetooth v4.0

NAVIGATION
Cartography Compatible with Lighthouse, Navionics, and C-MAP maps
Waypoints / Routes / Tracks (Wpts / Rts / Trk) 10,000 wpts / 200 groups of wpts / 150 rts - 250 wpt max / 16 tracks - Max 10,000 trk pts



D. Buongiorno, sto considerando di acquistare il gps Raymarine Axiom + 9 per sostituire un gps di vecchia data. Mi servirebbe anche un trasduttore ecoscandaglio semplice passascafo compatibile con il gps in questione. Cosa mi consigliate? Il tutto verrà installato in una imbarcazione di 11 metri planante e possiedo già un autopilota Raymarine nuovo installato l’anno scorso
R. 02-06-23 Buon pomeriggio, visto il Suo interesse per la funzione eco, necessario un Axiom versione RV: https://www.painestore.it/raymarine_axiom_9rv_display_9_eco/gps Se non è interessato a prestazioni per uso pesca, consiglio un trasduttore passante P319 con cavo adattatore A80489: https://www.painestore.it/trasduttore_da_poppa_p319_1 https://www.painestore.it/raymarine_axiom_cavo_adattatore_rv_a_trasduttori_cp-370 Cordiali saluti. Luigi Bianchi
D. Buongiorno ,, vorrei installarlo su un gommone in alluminio di 27 piedi motorizzato con un Suzuki 300 dual prop. vorrei sapere quali eventuali accessori devo ordinare per far dialogare lo strumento con il motore ed con un iPad. È già dotato di trasduttore oppure occorre comprarlo a parte? Grazie mille
R. 13-08-22 Buongiorno, preciso che la versione Axiom+ 9 in oggetto non ha la funzione eco, dovrà pertanto acquistare la versione RV: https://www.painestore.it/raymarine_axiom_9rv_display_9_eco/gps Disponibile sia senza trasduttore che con trasduttore RV-100 poppa selezionabile dove vede SCEGLI IL TRASDUTTORE. Per quanto riguarda il collegamento con Suzuki, necessaria l'interfaccia che dovrà acquistare da Suzuki, da aggiungere poi il kit cavi NMEA 2000: https://www.painestore.it/kit_di_avviamento_nmea_2000_ In merito all'integrazione con iPAD, non necessità nulla in più perchè il collegamento fra i due dispositivi avviene via WiFi. Le rammento, in caso di acquisto, di registrarsi per ottenere poi via mail il codice Coupon extra del 7%. Cordiali saluti. Luigi Bianchi
D. Buonasera, Devi sostituire il mio raymarine e90w, questo multifunzione Axiom 9+ è compatibile con il io radar, Ais 500 e autopilota st60? Grazie mille
R. 22-04-2021 Buongiorno, confermo la compatibilità con Radar mediante cavo adattatore cod. A80160: https://www.painestore.it/cavo_raynet_to_sths_400_mm_a80160 Confermo la compatibilità con autopilota ST6000 mediante kit cod. E22158: https://www.painestore.it/raymarine_kit_conversione_stng_a_seatalk_1_cod_e22158 Mentre da sperimentare il collegamento dell'AIS 500 con eventuale convertitore Actisense: https://www.painestore.it/actisense_ngw-1_ais_converter_nmea200/nmea0183 Cordiali saluti. Luigi Bianchi
D. Buon giorno volevo sapere cosa contiene la confezione se prevede il kit di montaggio a staffa e da incasso grazie
R. 07-03-2021 Buon pomeriggio, per gli Axiom 9 e 12, non sono necessari kit da incasso, tutto incluso nella confezione staffa, cavo alimentazione e la Cover. Di seguito codice Coupon extra 3+5% per la promo 35 anni: idyxv37q Cordiali saluti. Luigi Bianchi
D. Ho già questo strumento ma vorrei utilizzare la funzione fishfinder : quale modulo e sonda (da interno scafo) bisogna abbinare?
R. 03-01-2020 Buongiorno, di seguito link al sito per la box CP370 e trasduttore P79: https://www.painestore.it/modulo_fishfinder_cp_370 https://www.painestore.it/trasduttore_da_interno_p79_1 Cordiali saluti. Luigi Bianchi
D. buona sera gentilmente vorrei sapere se, con opportuno adattatore, questo multifunzione può comunicare con i miei strumenti raymarine st60 ( Wind, tridata) e con autopilota st6000. grazie
R. 04-10-2020 Buonasera, sì certo, mediante kit E22158, potrà interfacciare tutti gli strumenti di bordo ST 60 ed autopilota, con i nuovi Axiom, non compatibili però con antenne Radar analogiche. https://www.painestore.it/raymarine_kit_conversione_stng_a_seatalk_1_cod_e22158 Cordiali saluti. Luigi Bianchi
