Simrad Lowrance NAC-1 Hydraulic Autopilot with Precision 9

(0)
ESSENTIAL TO MATCH A SERIES DISPLAY: SIMRAD NNS, NSO, GO AND LOWRANCE HDS ELITE FS
COMPLETE WITH PRECISION 9 COMPASS SENSOR
Faq
Any questions about this product?
You'll find the answers you're looking for HERE
€ 1.899,00 € 2.394,19 -21%
Lowrance Simrad package Hydraulic
The NAC-1 Autopilot Pack offers a complete autopilot system for hydraulically steered inboard and outboard powered vessels under 10m (33ft), fully controllable from a Lowrance HDS Elite, FS, Simrad NSS evo2 or NSO evo2 multifunction display.

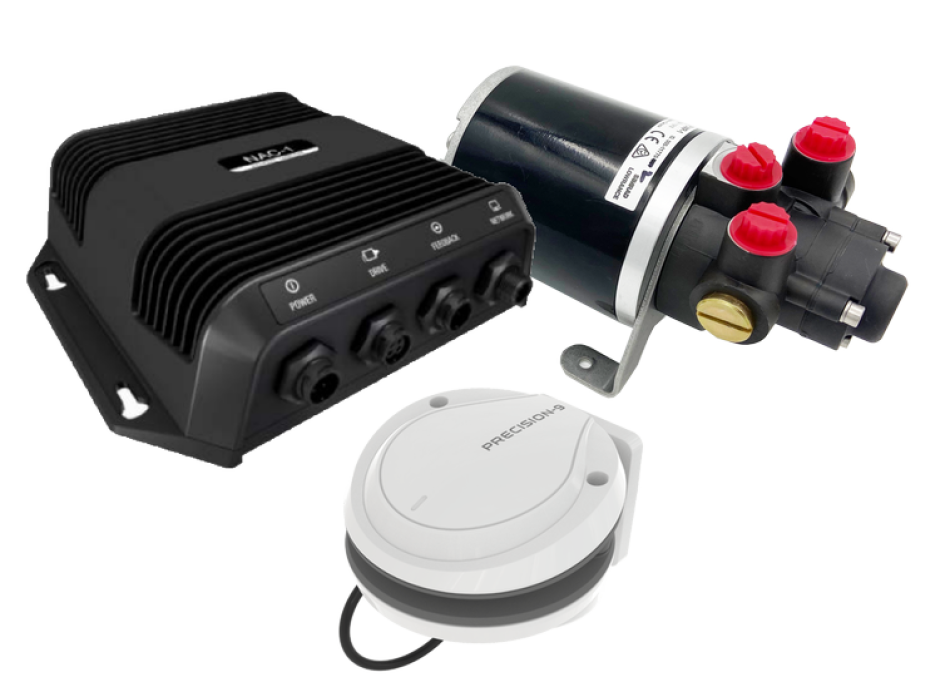

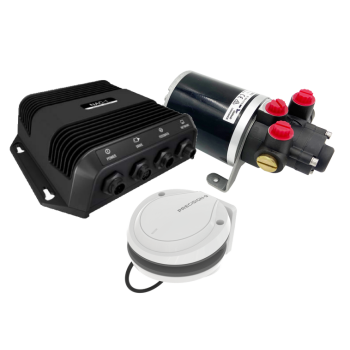

Package Contents NAC-1 autopilot computer, 0.8L hydraulic pump, Precision 9 compass sensor, auto/standby button, NMEA 2000 network kit, pump mounting kit.

Main Features
Control Simrad NSS evo2/NSO evo2 multifunction devices (free software update may be required)
Auto/standby button for dashboard mounting
Steering the vessel in a direction, course, or route.
Automatic turn patterns
DCT (Depth Contour Tracking)
Easy to install, super-quiet, high-efficiency 0.8L hydraulic pump
Includes all necessary cables, hoses, connectors and oil
Easy-to-insert connectors for quick assembly

Simrad NSS evo2/NSO evo2 and Lowrance HDS Elite-FS multifunction display integration
Designed exclusively for control of Simrad or Lowrance multifunction devices, the NAC-1 hydraulic autopilot package does not include or require a dedicated head unit, making it perfect for smaller vessels with limited helm space. You can set a heading—to a waypoint or along a predefined route—directly from your existing touchscreen display, or take control and precisely steer your vessel using the NSS evo2 or HDS.

Auto/standby button for dashboard mounting
The NAC-1 includes a dash-mounted remote auto/standby button for installation on the helm. This allows you to easily engage the autopilot or disengage it and instantly take manual control.

Automatic turn patterns
Pre-set turn patterns simplify maneuvers like U-turns without using excessive fuel, while more complex turn patterns support activities like fishing, finding dive sites, or even mapping a lake with Insight Genesis and NSS evo2’s built-in sonar or a networked SonarHub sounder module.

DCT (Depth Contour Tracking)
Using real-time depth measurements collected by the NSS evo2’s built-in sonar or a networked SonarHub depth sounder module, the NAC-1 can automatically steer your vessel along a contour line, making it perfect for lead or bottom fishing, but also ideal for a picturesque coastal cruise, automatically maintaining a safe depth beneath your vessel.

0.8L super-quiet hydraulic pump
The NAC-1 package includes a super-quiet, high-efficiency 0.8L 'PUMP-1' hydraulic pump, suitable for operating hydraulic systems on single or twin inboard and outboard engine boats under 10m. The highly efficient 12V operation is suitable for smaller boats, while the super-quiet operation helps make time on the water as enjoyable as possible.

Virtual Rudder Feedback (VRF)
Simplifying autopilot installation and maintenance, Simrad Virtual Rudder Feedback technology means the NAC-1 package does not require the installation of a separate feedback unit to monitor the outboard's position on single- or dual-outboard powered vessels.

Optional rudder position sensor
On inboard boats, an RF25N rudder feedback sensor (sold separately) can be used to precisely measure rudder position, providing smooth autopilot operation and a helpful rudder angle indication on the helm display. The RF25N rudder includes an 18-foot (5.5-meter) cable with a Micro-C connector for easy connection to the vessel's NMEA 2000® network.

Easy to install, all included
This complete kit includes everything you need for DIY or professional installation (full list below) on boats with single or dual outboard engines. Detailed instructions are provided, and the plug-and-play connectors installed on the NAC-1 autopilot computer help make installation quicker and easier than ever.
TECHNICAL SPECIFICATIONS
  • Complete autopilot system for single hydraulically driven outboard motors
  • Intuitive autopilot control from your Simrad multifunction display
  • Powerful features including turn patterns and depth contour detection
  • Suitable for boats nine metres (30 feet) and under
  • Perfect for DIY installation with simple and detailed guide
  • Simple plug and socket connection without complex terminal wiring
D Buongiorno funziona con hds8 gen1?
R 19-07-25 Buongiorno, non compatibile, deve acquistare eventualmente un display AP44 Simrad, oppure sostituire anche il suo HDS. Cordiali saluti. Luigi Bianchi
D Vorrei sapere se il kit pilota automatico lowrance è Compatibile con il mio lowrance hds 9 3 gen
R 24-03-25 Buongiorno, confermo la compatibilità con HDS Gen3. Cordiali saluti. Luigi Bianchi
D Buonasera, volevo prendere il nac 1 per poterlo collegare al mio lowrance elite volevo chiedervi per poterlo montare mi servirebbero solo i tubi e la barra di comando idraulica perchè la timoneria è già compresa nel kit del nac giusto?
R 07-12-24 Buon pomeriggio, scusi ma la sua richiesta è poco chiara. La sua barca deve essere già dotata di timoneria idraulica a cui verrà accoppiata la pompa idraulica che è inclusa nella confezione, oltretutto mi deve indicare anche il modello del pistone idraulico della sua timoneria per capire se l'autopilota in oggetto sia compatibile. Cordiali saluti. Luigi Bianchi
D Buon giorno, Questa unita autopilota e’ compatibile con nss evo 3s ? Io ho due honda 150 con una idroguida. Funzionerebbe ? Grazie
R 02-09-24 Buongiorno, sì certo confermo la compatibilità con NSS EVO3S. In merito alla compatibilità con il motore, dovrebbe indicarmi il modello del pistone idraulico della timoneria. Cordiali saluti. Luigi Bianchi
