Raymarine Command-Link1 mt NMEA 2000 cable F.
Using ECI-100 , selected Volvo Penta * engine Electronic Vessel Control (EVC) systems can be connected.
This allows you to view the following engine data on a connected Raymarine multifunction display and access full autopilot steering control over an IPS or Aquamatic system. Check compatible engines
Motor speed (rpm)
Engine hours
Engine oil temperature **
Engine coolant temperature **
Engine oil pressure **
Engine coolant pressure **
Engine fuel delivery pressure **
Engine fuel rate
Engine boost pressure **
Battery voltage
Transmission oil pressure **
Transmission oil temperature **
Fuel level **
Boat speed **
Power Trim **
Rudder angle (only when connected to an IPS system)
Engine alarms
Overtemperature
Low oil pressure
Low oil level
Low system voltage
Low coolant level
Water in the fuel
** Only available if Volvo sensor is installed *
Connecting your ECI-100 to the Volvo Penta * EVC System engine couldn't be simpler. Depending on the age of the engine and the type of installation, Raymarine has provided 2 cabling solutions:
Newer Volvo Penta engine * EVC systems - with a multi-link hub available
For new and recent Volvo Penta engine EVC systems *, a multi-link hub should be available. This will have 6 connections, 1 of which must be available to connect your ECI-100.

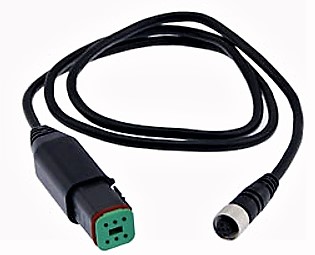

For this connection you need the Raymarine cable connection for use with the Volvo Penta engine. This cable is connected between the DeviceNet connector of the ECI-100 and the available socket on the multi-link hub.
1) SeaTalkng spur cable between SeaTalkng backbone and EV2 SeaTalkng connector.
2) ECI-100 units
3) ST ng mains power supply (12 V dc)
4) EV-2 - Evolution ™ autopilot
5) Raymarine connection cable for use with Volvo Penta * engines (E70240)
6) System bus for use with Volvo Penta engines *
7) Multi-Link Hub for use with Volvo Penta engines *
